SKU : 83207

6SM37-M-6000 brushless servomotor 1Nm, 6000rpm Kollmorgen SEIDEL 83207

£595.00

6SM37-M-6000 brushless servomotor 1Nm, 6000rpm Kollmorgen SEIDEL 83207

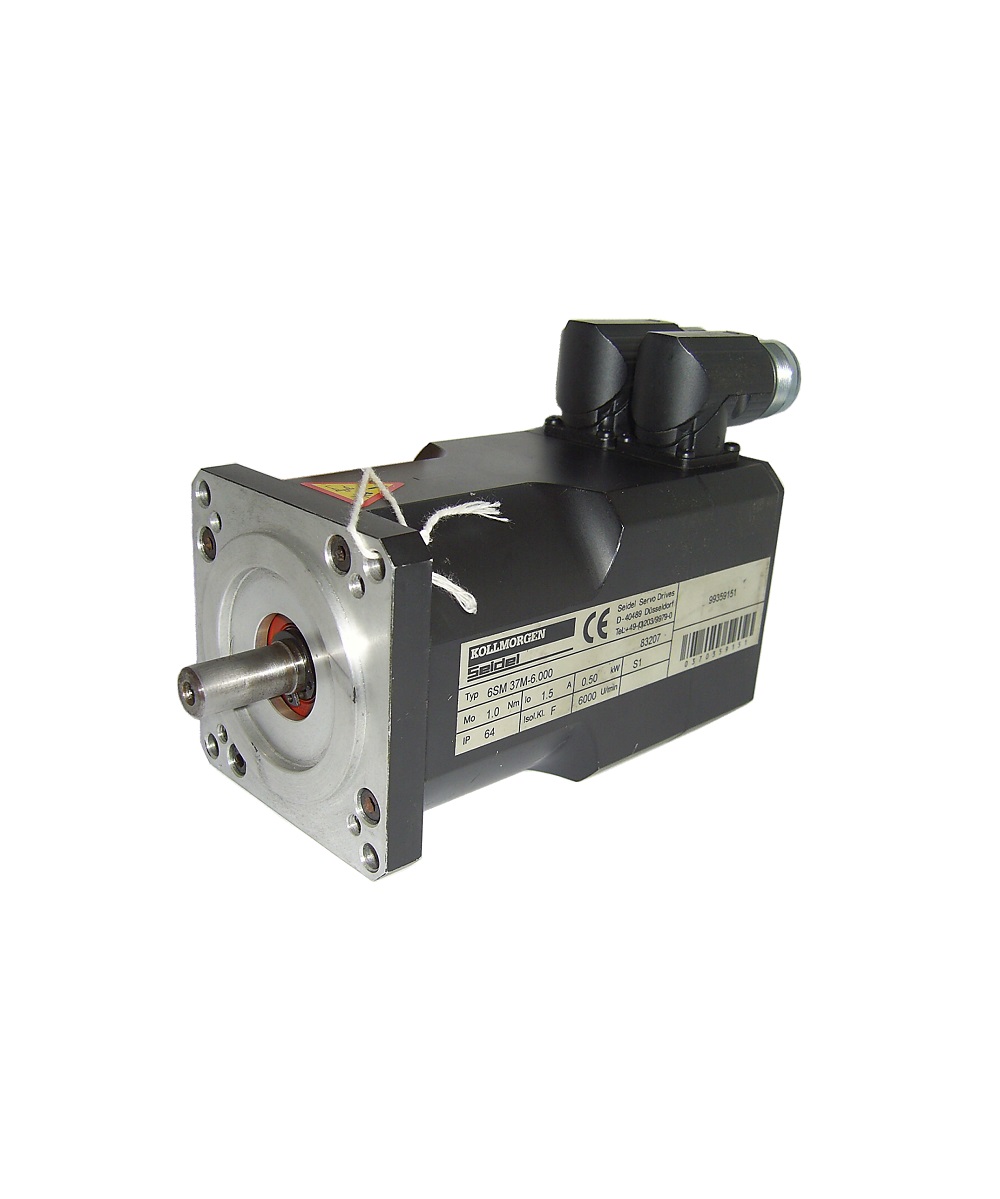

This 6SM37M-6000 brushless servomotor is a 6 pole, sinusoidally wound motor

made by Kollmorgen Seidel and is fitted with a resolver.

The motor has a 400V winding making it suitable for use with servo drives providing up to 600Vdc bus voltage.

This motor will, however, operate on 300V DC up to 3000rpm.

The motor is rated at 1.0 Nm holding torque, 0.8 Nm rated torque at 6000rpm and 4.0 Nm peak,

with a torque constant of 0.62Nm/A. Motor inertia is 0.7 kgcm2.

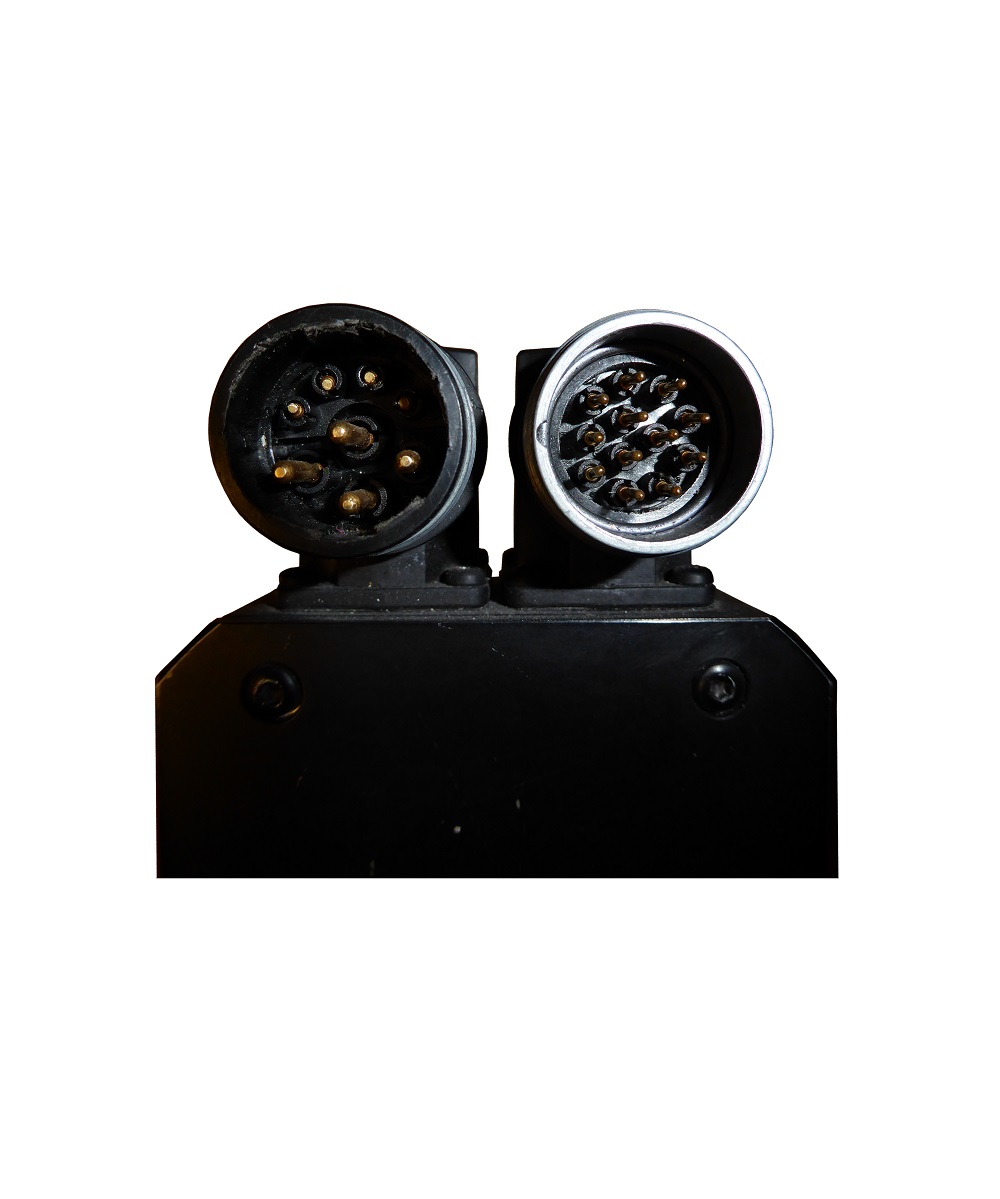

Connections are made via sockets on the motor housing.

Suitable mating connectors are available, as is a user manual.

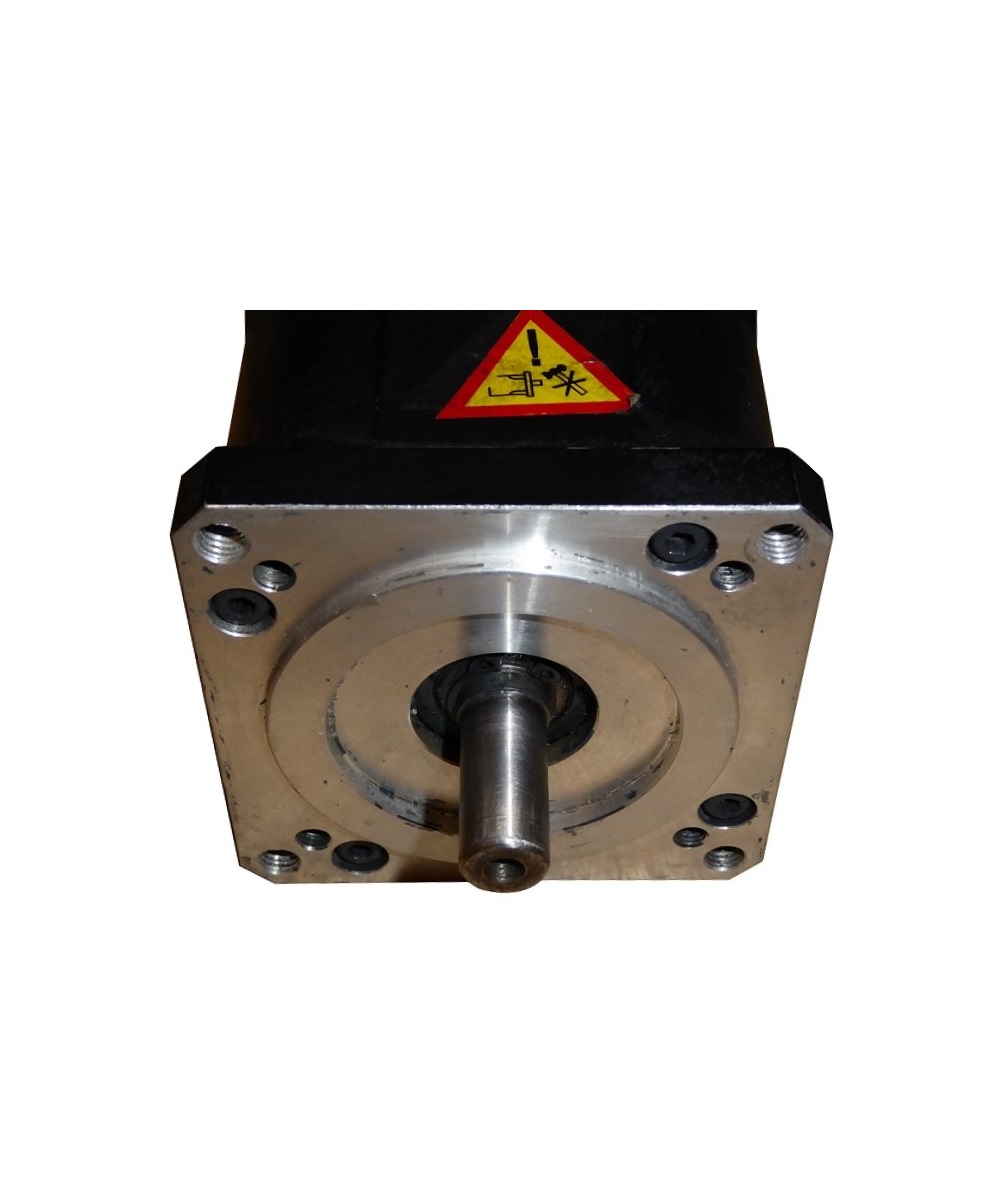

The motor flange measures 75mm square, with an 11mm shaft (no keyway),

60mm diameter locating spigot and four mounting holes on a 90mm PCD.

Overall length is 157mm and weight is 2.3kg.

This item is used, has been tested and is fully functional.

This 6SM37M-6000 brushless servo motor is a 6 pole, sinusoidally wound motor made by Kollmorgen Seidel and is fitted with a resolver. The motor has a 400V winding making it suitable for use with servo drives providing up to 600Vdc bus voltage. This motor will, however, operate on 300V DC up to 3000rpm. The motor is rated at 1.0 Nm holding torque, 0.8 Nm rated torque at 6000rpm and 4.0 Nm peak, with a torque constant of 0.62Nm/A. Motor inertia is 0.7 kgcm2. Connections are made via sockets on the motor housing. Suitable mating connectors are available, as is a user manual. The motor flange measures 75mm square, with an 11mm shaft (no keyway), 60mm diameter locating spigot and four mounting holes on a 90mm PCD. Overall length is 157mm and weight is 2.3kg. This item is used, has been tested and is fully functional. It comes with 6 months back to base warranty.
This 6SM37M-6000 brushless servo motor is a 6 pole, sinusoidally wound motor made by Kollmorgen Seidel and is fitted with a resolver. The motor has a 400V winding making it suitable for use with servo drives providing up to 600Vdc bus voltage. This motor will, however, operate on 300V DC up to 3000rpm. The motor is rated at 1.0 Nm holding torque, 0.8 Nm rated torque at 6000rpm and 4.0 Nm peak, with a torque constant of 0.62Nm/A. Motor inertia is 0.7 kgcm2. Connections are made via sockets on the motor housing. Suitable mating connectors are available, as is a user manual. The motor flange measures 75mm square, with an 11mm shaft (no keyway), 60mm diameter locating spigot and four mounting holes on a 90mm PCD. Overall length is 157mm and weight is 2.3kg. This item is used, has been tested and is fully functional. It comes with 6 months back to base warranty.
This 6SM37M-6000 brushless servo motor is a 6 pole, sinusoidally wound motor made by Kollmorgen Seidel and is fitted with a resolver. The motor has a 400V winding making it suitable for use with servo drives providing up to 600Vdc bus voltage. This motor will, however, operate on 300V DC up to 3000rpm. The motor is rated at 1.0 Nm holding torque, 0.8 Nm rated torque at 6000rpm and 4.0 Nm peak, with a torque constant of 0.62Nm/A. Motor inertia is 0.7 kgcm2. Connections are made via sockets on the motor housing. Suitable mating connectors are available, as is a user manual. The motor flange measures 75mm square, with an 11mm shaft (no keyway), 60mm diameter locating spigot and four mounting holes on a 90mm PCD. Overall length is 157mm and weight is 2.3kg. This item is used, has been tested and is fully functional. It comes with 6 months back to base warranty.
This 6SM37M-6000 brushless servo motor is a 6 pole, sinusoidally wound motor made by Kollmorgen Seidel and is fitted with a resolver. The motor has a 400V winding making it suitable for use with servo drives providing up to 600Vdc bus voltage. This motor will, however, operate on 300V DC up to 3000rpm. The motor is rated at 1.0 Nm holding torque, 0.8 Nm rated torque at 6000rpm and 4.0 Nm peak, with a torque constant of 0.62Nm/A. Motor inertia is 0.7 kgcm2. Connections are made via sockets on the motor housing. Suitable mating connectors are available, as is a user manual. The motor flange measures 75mm square, with an 11mm shaft (no keyway), 60mm diameter locating spigot and four mounting holes on a 90mm PCD. Overall length is 157mm and weight is 2.3kg. This item is used, has been tested and is fully functional. It comes with 6 months back to base warranty.
